Furnaces for Aluminum Alloys

For heating and heat treatment furnaces for aluminum alloys, the processing temperature range remains under 600℃, hence no radiation heat is expected. Accordingly, heat transfer based on convection is conducted, and a circulating hot air method is considered optimal. Since we have developed furnaces using convection heat transfer based on the circulating hot air method ever since day one, a circulating hot air system has been established for both rotary hearth and continuous furnaces. Compact heating furnaces require swift thermal capability, meaning the operational heat-transfer coefficient must be increased right to the limit. Moreover, although the heat treatment furnace requires swift heating, extremely high temperature accuracy is also required. Our circulating hot air oven combines both features. The ROTAVECT/RC/ARC series features good thermal efficiency with our original circulating hot air mechanism, which does not overheat and is fine-tuned to adapt to changes in thermal load. For rotary hearth furnaces, since they are basketless and involves individual processing, thermal efficiency peaks at 40~70%.

Forging heating furnace

[Main products to be treated]
Engine pistons, car cooler compressor pistons/swash plates/scrolls, base carrier parts such as aluminum wheels/suspension, etc., various forging stock

  • image

    R-type rotary hearth furnace Forging heating furnace

    ROTAVECT R135-100

    Heating for flat/ring forging stock

  • image

    DHF-type rotary hearth furnace Forging heating furnace

    ROTAVECT DHF160-30-1

    Heating round-bar forging stock

  • image

    DHF-type rotary hearth furnace Heating furnace for F/F

    ROTAVECT DHF320-10-2

    Heating for casting/forging aluminum wheel flow forming

  • image

    RF-type rotary hearth furnace Forging heating furnace

    ROTAVECT RF90-9

    General-purpose type for flat/round bar/atypical material heating, secondary heating, etc.

  • image

    Mesh belt continuous RC type Forging heating furnace

    RC90-16

    General-purpose type Flat/round bar/ atypical material heating, secondary heating etc.

  • image

    RC-type continuous conveyor Forging heating furnace

    RC75-12-C

    General-purpose type Round-bar heating, secondary heating, etc.

  • image

    Mesh belt continuous ARC type Forging heating furnace

    ARC35-3

    General-purpose type Flat/round bar/ atypical material heating, secondary heating, etc.

  • image

    Batch RB type Forging heating furnace

    RB16

    General-purpose type Heating of large-diameter material, secondary heating, etc.

Heat treatment furnace

[Main products to be treated]
Various cast/forging/Die-cast items, aluminum wheel, cylinder heads, engine block etc.

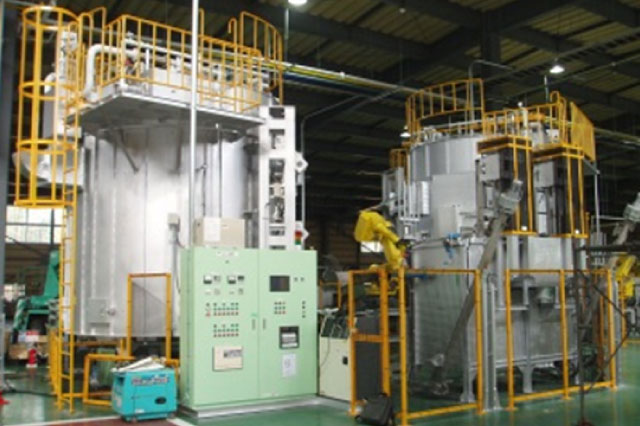

  • image

    DHF-type rotary hearth furnace
    heat treatment furnace (T4/T5/T6/T7) Basketless

    ROTAVECT
    DHF440-17-10(S・A)

    Patented products
    Thermal treatment of Automobile/Motorcycle wheels cylinder heads

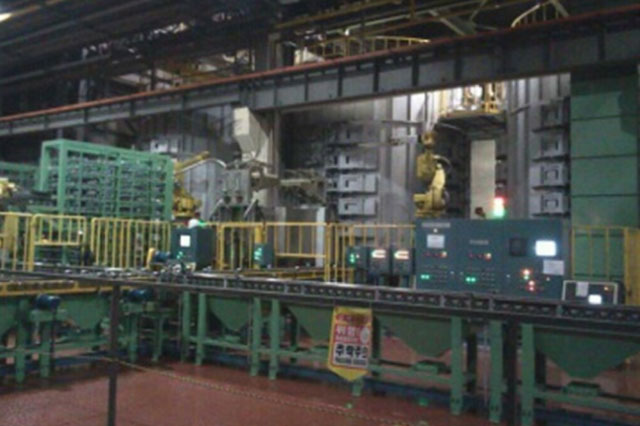

  • image

    DHF-type rotary hearth furnace
    Heat treatment furnace (T4/T5/T6/T7) Basketless

    ROTAVECT
    DHF290-12-4(S・A)

    Patented products
    Automobile / Motorcycle aluminum wheels, thermal treatment of base carrier parts

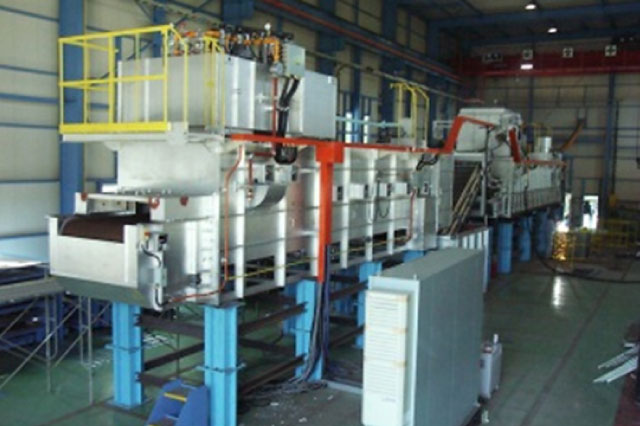

  • image

    Mesh belt continuous Heat treatment furnace (T4/T5/T6/T7)

    RC55-8S/RC80-12A

    Thermal treatment of car cooler compressor forging parts

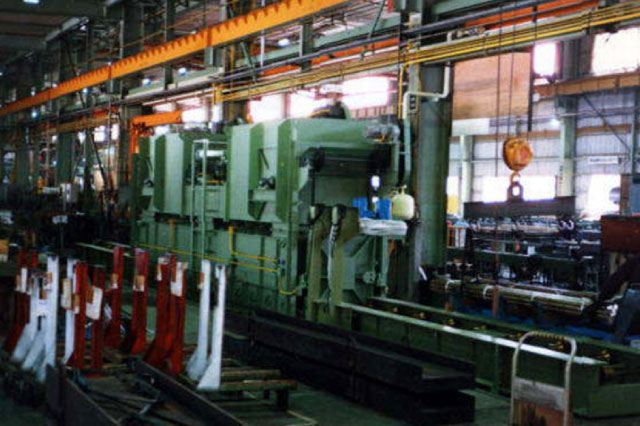

  • image

    Roller hearth continuous RH type  Heat treatment furnace

    RH10

    General-purpose type Thermal treatment of various materials

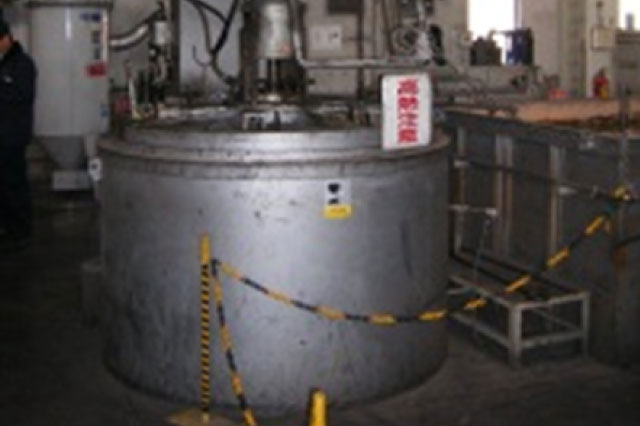

  • image

    Pit
    heat treatment furnace

    REN12

    General-purpose type Thermal treatment of various materials

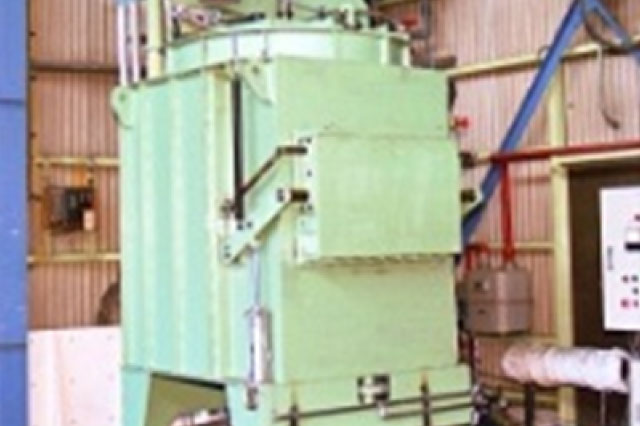

  • image

    Batch QH type Rapid heating furnace

    QH

    Patented products
    General-purpose type Thermal treatment of small lot and test products
